The Basic Ox Kit is a cost-effective alternative to the Ultimate Ox Block Kit, giving you everything you need to work, lower, and lift up to 40’. Packed with two BuckRigger™ pulleys (single & double sheave) as opposed to the Ultimate Ox Kits bigger Buck Side Swivels. The BOK gives you the option of a 2:1, 3:1, & 4:1 pulley system with progress capture giving you numerous rigging options at your fingertips. All this packed in one small, self-contained bag that can be stored in the back of your truck and then easily toted when it’s time to put the BOK to work.

As with most of Buckingham Manufacturing’s products, the BOK is completely customizable. Call customer service to customize or email sales@buckinghammfg.com.

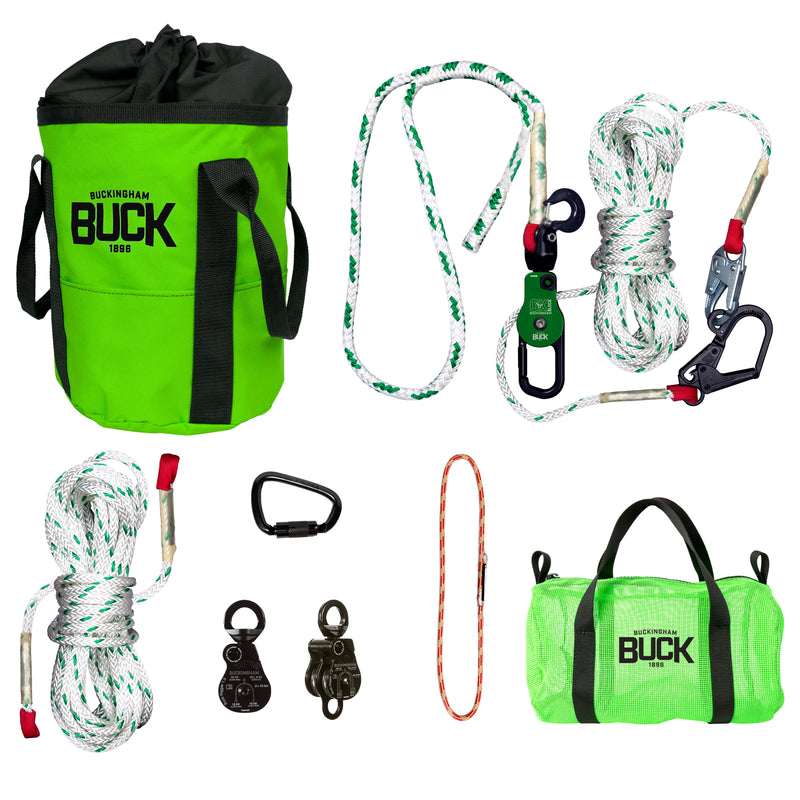

The Basic Ox Kit includes:

For day to day work where a handline is needed:

• OX BLOCK™ CLEVIS TOP / OX HOOK™ HANDLINE ASSEMBLY (80’ handline)- 50062K14-4/80 (Qty:1).

When the need for lifting occurs:

• ROPE (200’)- 39SAM27Q2-200 (Qty:1)
• DOUBLE SHEAVE BUCKRIGGER™- 5007R2 (Qty:1)
• SINGLE SHEAVE BUCKRIGGER™- 5007R1 (Qty:1)
• 8MM WARPSPEED 16″ ENDLESS LOOP (progress capture)- P9C8V-10-16S (Qty:1)
• STEEL DOUBLE ACTION CARABINER – 5005S5 (Qty:1)

Hardware components packed in a breathable Buck-Viz™ mesh bag:

• MESH EQUIPMENT BAG- 45400G10-9

Entire kit packed in a water-resistant & ventilated equipment bag:

• LARGE ROPEPRO™ DELUXE BAG- 4374

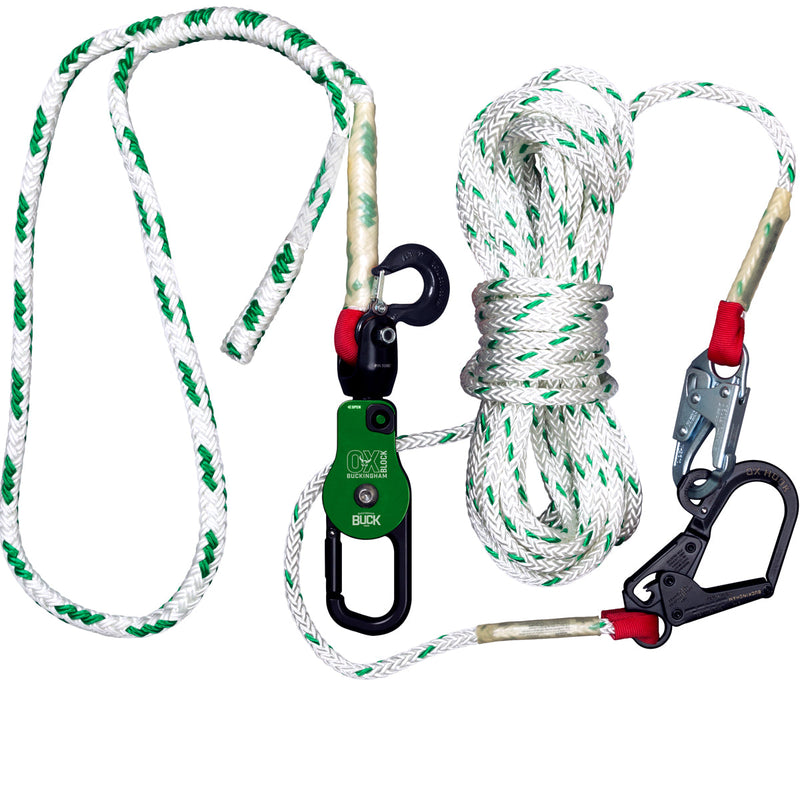

Product Number: 50062K14-4/80
Product Name: OX BLOCK™ CLEVIS TOP / OX HOOK™ HANDLINE ASSEMBLY
Material: Lightweight Aluminum
Length: 10.5″
Width: 2″
Gate Opening Capacity: 1.5″
Weight: 9.7 lbs.
Adjustable Sling: 4′ x 5/8″
Handline Assembly: 80′ OX Hook™
Connector: 1706 Snap
HOOK TO EYE:
MBS: 6,000 lbs
WLL: 1,500 lbf
SHEAVE TO EYE:
MBS: 10,000 lbs
WLL: 2,500 lbf
OX Block™ Standards: ASME B30 Compliant

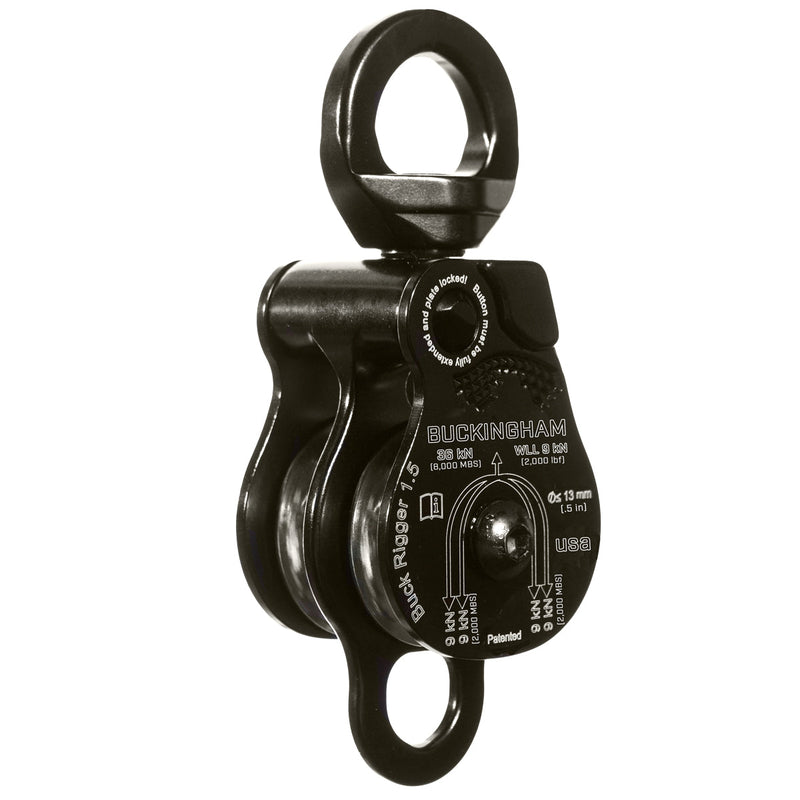

Product Number: 5007R2
Material: Aluminum
Weight: 14.7 oz
Height: 6.4″ (163mm)
Width: 2.5″ (63mm)
Thickness: 2.25″ (58mm)
Pulley Size: 1.5″ (38mm)
Max Rope Diameter: 1/2″ (13mm)
Breaking Strength: 8000 lbf (36Kn)
Weight Rating: WLL – 1800 lbf (8Kn)

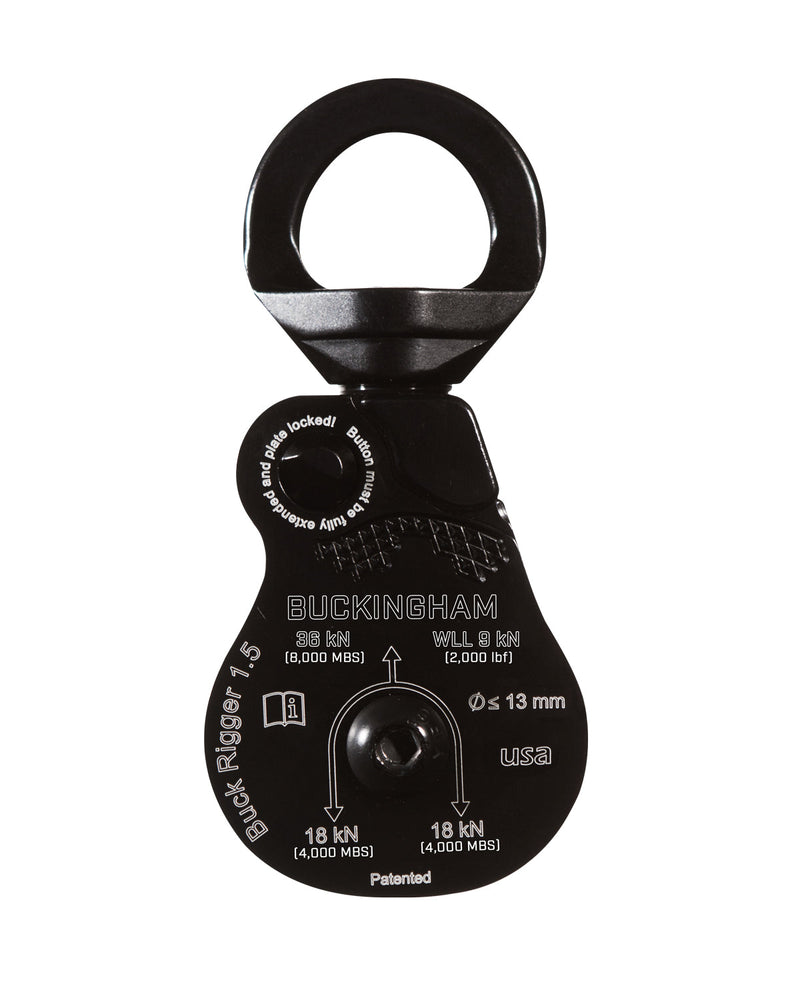

Product Number: 5007R1
Weight: 9.2 oz
Height: 5.3″ (135mm)
Width: 2.5″ (63mm)
Thickness: 1.2″ (30mm)
Material: Aluminum
Pulley Size: 1.5″ (38mm)
Max Rope Diameter: 1/2″ (13mm)
Breaking Strength: 8000 lbf (36kN)
Weight Rating: WLL – 1800 lbf (8kN)

Product Number: P9C8V-10-16S
Product Name: 8MM WARPSPEED 16″ ENDLESS LOOP
Material: 8MM DYNEMA ROPE
Prusik Type: Endless Loop
Rope Size: 8MM
Length: 16″
MBS: 5,000 LBF
Weight: .09 lbs
Product Number: 5005S3
Option Number: N/A
Weight: 10.5 oz
Length: 4.68″ (119mm)
Width: 3.07″ (78mm)
Material: Alloy Steel
Diameter of Eye: No Eye
Gate Opening Capacity: 0.94″ (24mm)
Gate Strength: 3600 lbs
Breaking Strength: 11240 lbs (50KN)
Standards Met: CSA Z259.12 / ANSI Z359.12
Other: Double Action (2)

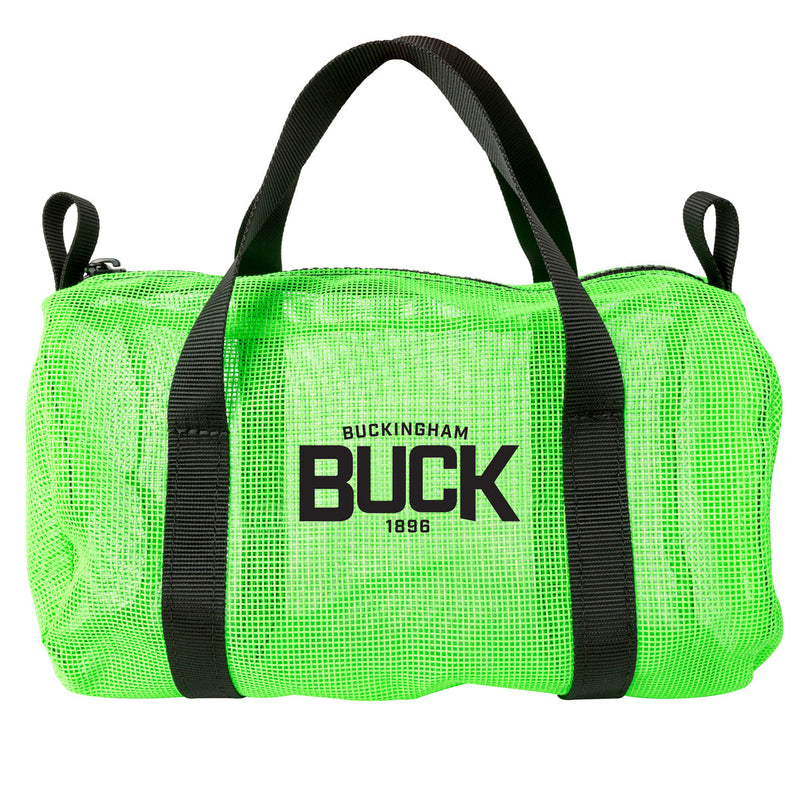

Product Number: 45400G10-9
Product Name: Buckingham Mesh Equipment Bag
Length: 9″
Width: 5″
Material: Mesh
Handles: Yes
Handle Material: 1″ Nylon Web
Closure Type: Zipper
Product Number: 4373
Product Name: Large ROPEPRO™ DELUXE BAG BY BUCKINGHAM International
Height: 16″
Width: 14″
Depth: 16″
Weight: 3.2 lbs
Number of Pockets: 6
Outside Pockets: 6
Inside Pockets: 0
Material: Water Resistant Canvas
2 Way Snap: No
Rain Flap: Water-Resistant
Back Straps / Shoulder Straps: Yes / Optional Back Pack Attachment – 4375
Closure Tab: Zipper
Bottom Material: Water Resistant Canvas
