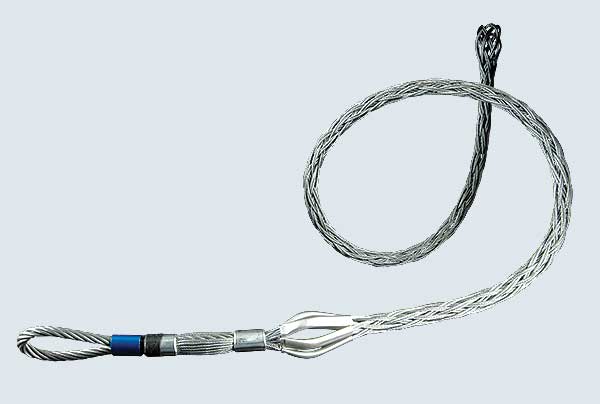

High Strength Grips A type
High Strength Grips A type

High Strength Grips A type

by Linemens Supply
$138.89 - $715.98
$138.89
$138.89 - $715.98
$138.89

Delivery time

Orders for this product usually ship in 7-14 business days.

SKU ZCS1799

This is the strongest grip we produce. It can be used for a conductor and synthetic rope pulls. A-Type grips are color-coded for ease of identification. Perfect for overhead transmission and distribution line pulling projects or any other pulling applications with heavy load ratings such as electric railroad, rigging lines and construction pulls. When pulling synthetic rope use a Slingco Feed Tube to make inserting rope into the grip a breeze. Made of galvanized steel. To avoid the effects of torsion a line pulling swivel that rotates under load should be used with pulling grips.

Ā

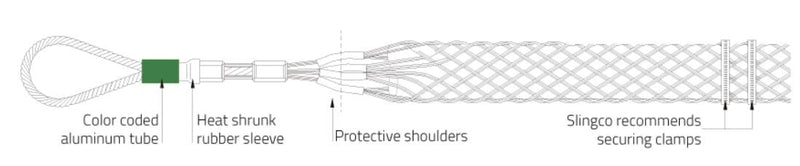

Features and benefits

  • Double-weave construction
  • Colour coded for ease of identification
  • Protective shoulders to prevent abrasion
  • Suitable for bare or insulated conductors
  • Flexible eye compatible with Line swivels
Rope Diameter (mm) Conductor Diameter (mm) Overall Length (mm) Lattice Length (mm) Approx Break Load (kg) Colour Code Slingco Part No.
6 - 16 5 - 10 965 710 3,180 Black ZCS1799
7.5 - 10 6 - 10 1,067 760 4,530 Purple ZCS3020
13 - 23 9.7 - 16 1,300 940 6,360 Dark Green ZCS1800
11 - 23 11 - 16 2,800 2,470 9,072 Grey ZCS3522
19 - 28 16 - 22 1,880 1,473 9,072 Red ZCS1801
25 - 38 22 - 29 2,032 1,549 13,955 Blue ZCS1802
32 - 43 29 - 35 2,845 2,299 21,360 Yellow ZCS1803
38 - 53 35 - 50 3,020 2,336 30,455 Aluminium ZCS1804
50.8 - 66 2,775 2,557 32,000 - ZCS6712
63.5 - 76 2,775 2,557 32,000 - ZCS7852
