Name: OX BLOCK™ With Two Carabiners - 50061B
Brand: Buckingham
SKU: 50061B
Price: 811.41 USD
Availability: InStock

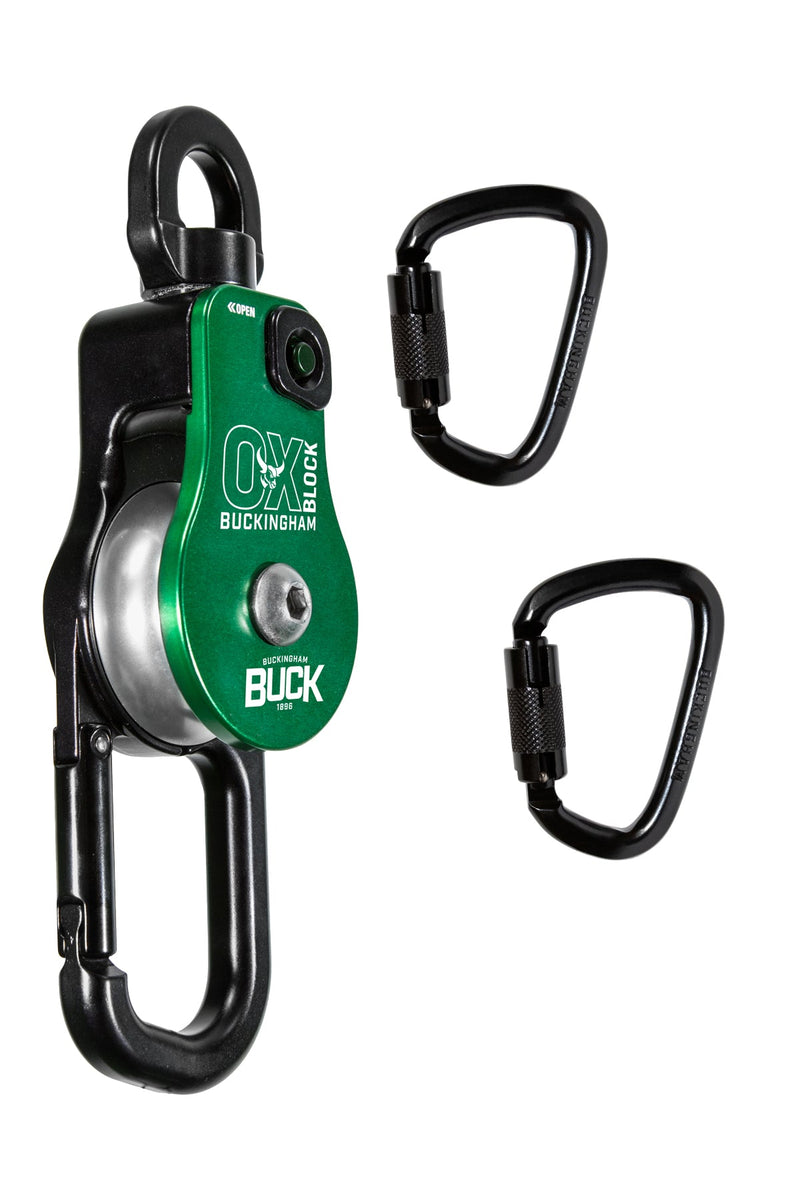

OX BLOCK™ With Two Carabiners - 50061B

by Buckingham

$811.41 - $811.41

$811.41

$811.41 - $811.41

$811.41

Delivery time

Orders for this product usually ship in 7-14 business days.

SKU 50061B

Quantity

Description

The OX BLOCK™ is a rope snatchblock with an integrated friction bar used for:

Hurtman/self-rescue
Lowering
Raising
Snubbing loads

*Comes with two double action carabiners.

It allows the rigging professional to handle loads with greater control. When lowering loads, tension is transferred from the worker to the OX BLOCK™.

The patented OX BLOCK™ replaces standard handline blocks, parted blocks and various snatch blocks.
Has greater WLLs than blocks of similar size.
When configured with optional pulleys, the OX BLOCK™ can be used to create a 4:1, 5:1 or 6:1 mechanical advantage reducing the amount of force needed to lift heavy loads.
The advantage of the pulleys used by Buckingham is the swivel side plate that allows for quick and easy rope installation without removing the pulley from the connecting device.
ASME B30 Compliant

Product Specifications

Product Number:	50061B
Product Name:	OX Block™
Material:	Lightweight Aluminum
Length:	10.5"
Width:	2"
Gate Opening Capacity:	1.5"
Weight:	2.15
Connectors:	Two 5005S5 Double Action Carabiners
HOOK TO EYE:
MBS:	6,000 lbs
WLL:	1,500 lbf
SHEAVE TO EYE:
MBS:	10,000 lbs
WLL:	2,500 lbf

Instructions & Warnings

OX BLOCK™ Instructions & Warnings

*To view other Ox Block videos, click the menu in the upper left of the video frame.

OX BLOCK™ With Two Carabiners - 50061B
