Buckingham Buck Side Swivel™ - 50071B1

Buckingham Buck Side Swivel™ - 50071B1

by Buckingham
$320.96 - $320.96
$320.96
$320.96 - $320.96
$320.96

Delivery time

Orders for this product received by 12:00/Noon EST ship same business day. After 12:00/Noon EST ship next business day.

SKU 50071B1

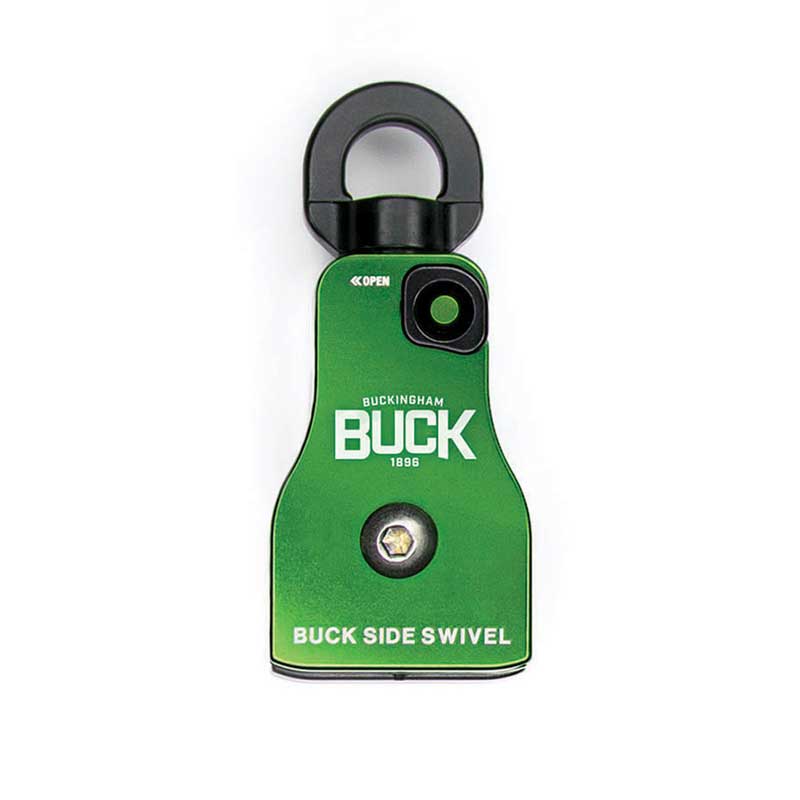

The Buck Side Swivel™ is a heavy-duty aluminum single sheave pulley that has a 5/8" diameter rope capacity with a 2500 lbf. working load limit. The "Side Swivel" plate allows rope to be installed/removed without disconnecting it from the anchor point.

Specially designed side plates are ideal for use with progress capture prusiks. Swivel eye prevents twisting of ropes. Ideal for building mechanical advantage with the OX BLOCK™.

 Product Specifications

Part Number: 50071B1
Weight: 1.6 lb
Length: 7" (178mm)
Width: 3" (76mm)
Material: Aluminum
Diameter of Eye: Swivel Eye - 1"
Breaking Strength: MBS - 10000 lbf (44KN) / WLL - 2500 lbf (11KN)
Other: Max Rope Diameter - 5/8" (16mm) / 5/8" x 2 1/8" Sealed Ball Bearing Pulley Thickness - 1.813" (46mm)



Instructions & Warnings

Buck Side Swivel Instructions & Warnings

OX BLOCK™ Instructions & Warnings



Videos

Double Side Swivel Application (Click to Download)

Ox Block™ Anchorage (Click to Download)

Ox Block™ Lift & Lower (Click to Download)

Compound Pulley System Training (Click to Download)

Ox Block™ Progress Capture (Click to Download)
