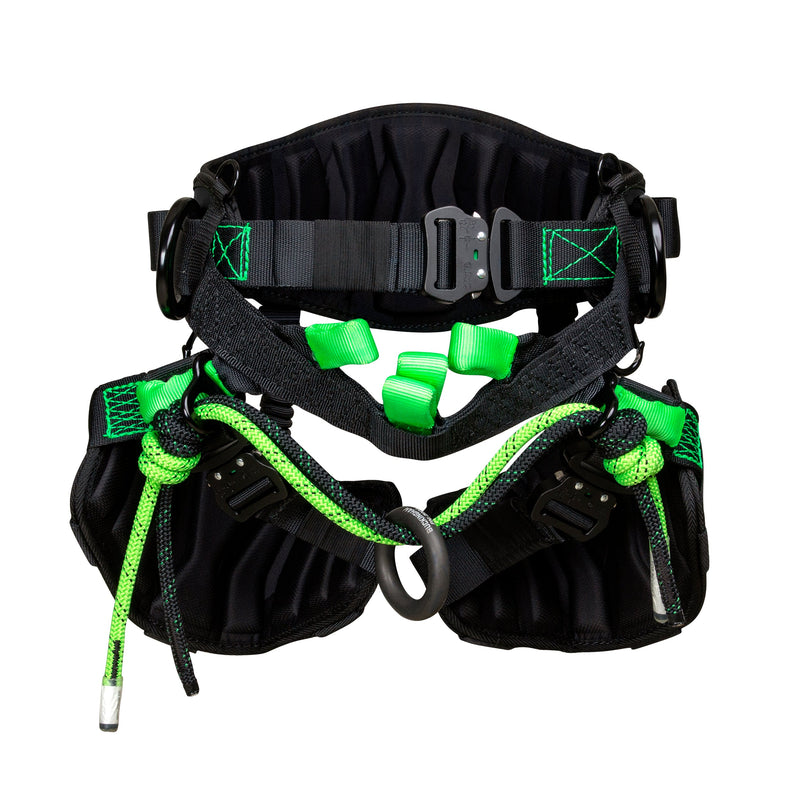

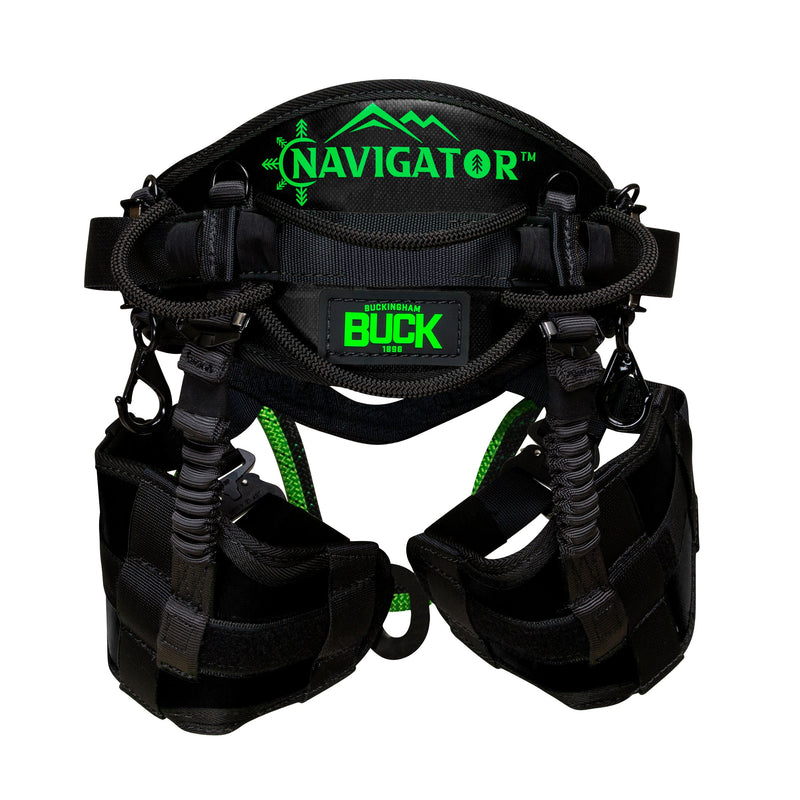

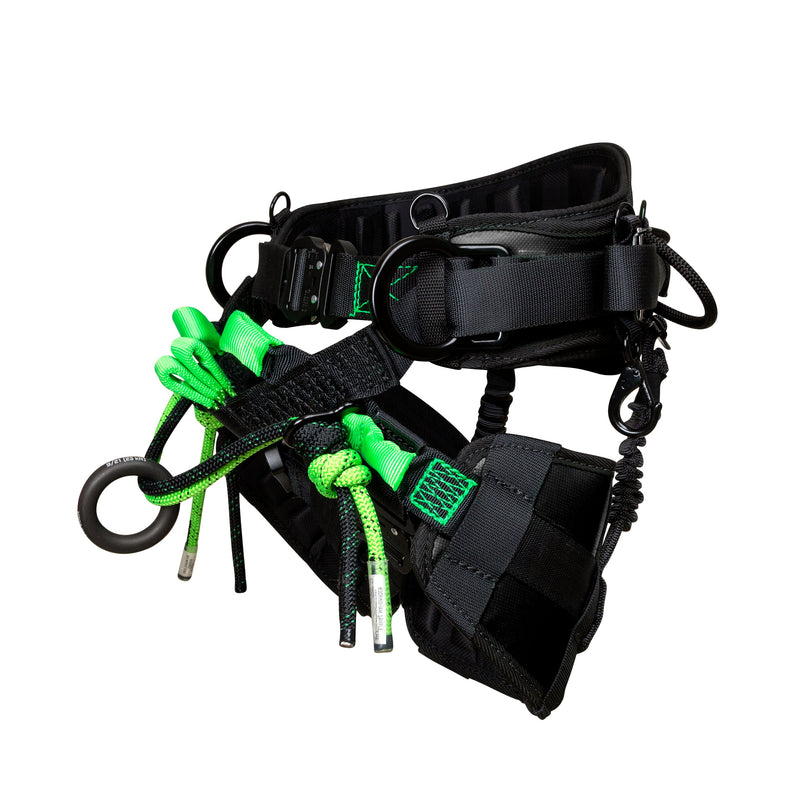

Navigator™ Saddle - 1470

Original price $595.64 - Original price $680.64
Original price
$595.64 - $680.64
Current price $595.64

Delivery time

Orders for this product usually ship in 7-14 business days.

SKU 1470-S

A generation of saddle development all packed into one. Designed and engineered in conjunction with the team at ArborMaster® Outfitters combining 100+ years of saddle R&D and a goal to introduce the most versatile and comfortable saddle to ever hit the market.

  • Specially designed air-flow leg pads to properly support you while suspended positioning.
  • Specially designed DRT and SRT soft loop connection points for optimized climbing system positioning or work positioning
  • 14 total points of attachment to maximize options and optimize your movement while working.


  • Industry leading support and comfort.
  • Specially designed air-flow leg pads to properly support you while suspended or positioning.
  • Dual rope bridge or option for a segmented pocket dual rope bridge.
  • Rated attachment points that allow the use of a Retro-Y harness for use while working in a bucket.
  • Specially designed for DRT and SRT.
  • The injection molded rigid back pad distributes the weight of the user more evenly to increase comfort.
  • Water & moisture resistant construction
  • Larger D-rings for work positioning lanyard attachment

For a Retro Y-Style Harness Attachment order REH5

Product Specifications:
Model Number: 1470 (S-X)
Product Name: Navigator Saddle
Waist Strap Connection Type: Quick Connect Buckle
Suspension Adjustment Type: Friction Buckles
Leg Strap Connection Type: Quick Connect Buckles
Buckle Material: Aluminum
Number of Dee Rings: 2
D-ring Material: Aluminum
Belt Strap Material: Nylon
Back Pad Material: Compression Molded Padding
Accessory Snap / Ring: Yes
Floating Suspension Ring: Yes (5000 lbs. 1-7/8″ Eye Aluminum Ring)
Bridge Type: Double Rope Bridge
Bridge Material: 3/8″ Static Rope (Black w/ green tracer & Green w/ black tracer)
Bridge Length: 40″
Minimum Required Tail Length Labels: Yes (3″ minimum tail labels)
Bridge connection type: Aluminum rigging paws
Suspender Attachment Rings: Yes
Gear Loops/Hangers: Yes (4)
Chainsaw Hanger Slots: Yes
First Aid Pouch Storage Yes
Back Pad Width: 8″
Waist Strap Width: 1 3/4″
Thread / Stitching: Nylon
Product Type: Work Position
User Weight Capacity: 350 lbs.
Weight: 6.15 lbs.
Standards: ASTM F887
Made in the USA?: Yes

Instructions & Warnings:
Saddle Instructions
