TRIPOD FOR CONFINED RETRIEVAL SYSTEM (Tripod Only) - 5003

Original price $1,645.35 - Original price $1,645.35
Original price
$1,645.35
$1,645.35 - $1,645.35
Current price $1,645.35

Delivery time

Orders for this product usually ship in 7-14 business days.

SKU 5003

When entering a confined space, a worker must be attached to an independent lifeline for adequate fall protection and retrieval. Buckinghams retrieval systems exceed all current OSHA and ANSI requirements. Read and follow the users manual enclosed with every system.

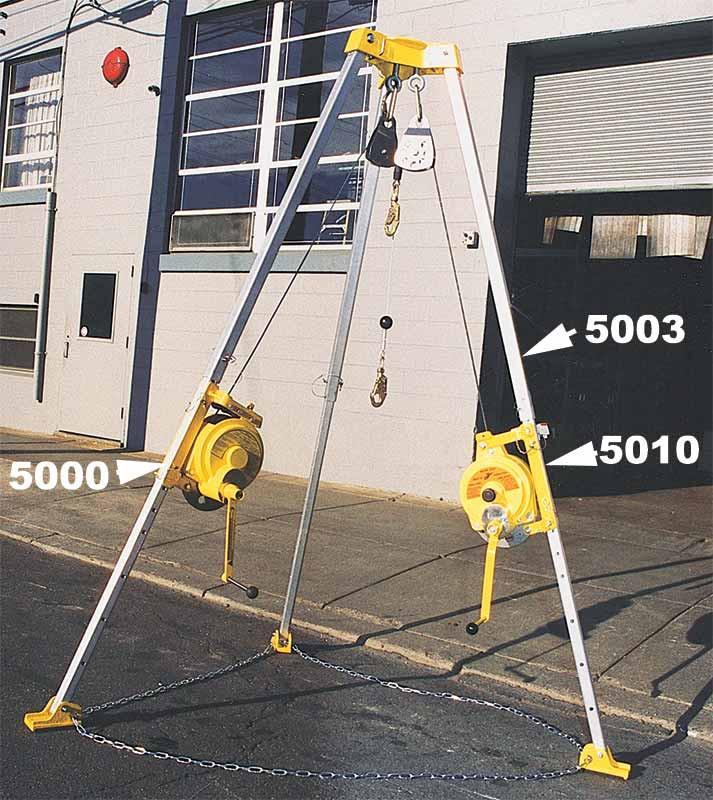

A complete retrieval system should consist of:

  1. A man rated winch to be attached to personnel at all times during the descent and work below grade
  2. Tripod (5003)
  3. Full Body Harnesses (See Harness Section)
  4. Work Winch to raise and lower materials only (5000) (5010)



*Tripod, Man Rated Winch and Work Winch are purchased separately.

Product Number: 5003
Product Name: 7 Foot Tripod
Maximum Static Load: 5,400 lbs.
Maximum Work Load: 350 lbs.
Height with Legs: 84" Max, 48" Min
Distance Between Feet: 56" Max, 36" Min
Leg Material: Aluminum
Adjustment Pin: Yes
Pin Material Galvanized Steel
Rubber Padded Feet: Yes
Leg Chains: 168"
Weight: 40 lbs.
